YE4系列高效節能電機安裝尺寸

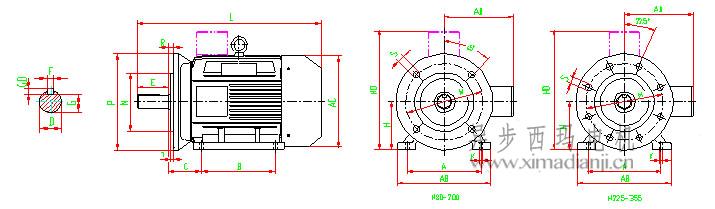

YE4系列三相異步電動機安裝及外形尺寸

YE4系列三相異步電動機安裝及外形尺寸


機座號

Frame size

極數Poles安裝尺寸(毫米)Mounting dimension(mm)外形尺寸(毫米)Contour dimension(mm)
HABCDEFGGDKMNPRSTABACADHDL
80M2、480125100501940615.56101651302000123.5165175145220305
90S2、4、6901401005624508207101651302000123.5180205170265390
90L901401255624508207101651302000123.5180205170265420
100L2、4、6、8100160140632860824712215180250014.54205215180270430
112M112190140702860824712215180250014.54230255200310475
132S1322161408938801033812265230300014.54270310230365575
132M1322161788938801033812265230300014.54270310230365590
160M160254210108421101237814.5300250350018.55320340260425760
160L160254254108421101237814.5300250350018.55320340260425760
180M180279241121481101442.5914.5300250350018.55355390285460825
180L180279279121481101442.5914.5300250350018.55355390285460825
200L2003183051335511016491018.5350300400018.55395445320520890
225S4、82253562861496014018531118.5400350450018.55435495350575865
225M22253563111495511016491018.5400350450018.55435495350575865
225M4、6、82253563111496014018531118.5400350450018.55435495350575865
250M22504063491686014018531124500450550018.55490550390635990
250M4、6、82504063491686514018581124500450550018.554905503906351075
280S22804573681906514018581124500450550018.555506304357051045
280S4、6、8280457368190751402067.51224500450550018.555506304357051045
280M22804574191906514018581124500450550018.555506304357051135
280M4、6、8280457419190751402067.51224500450550018.555506304357051135
315S2315508406216651401858112860055066002466356455308451240
315S4、6、8315508406216801702271142860055066002466356455308451350
315M2315508457216651401858112860055066002466356455308451270
315M4、6、8315508457216801702271142860055066002466356455308451380
315L2315508508216651401858112860055066002466356455308451240
315L4、6、8315508508216801702271142860055066002466356455308451350
